Steel Fabrication

  • Scope: Truss Superstructure
Milton, KY - Madison, IN
  • Design-Build
  • Truss

Milton-Madison Bridge

  • Design-Build
  • Truss

PROJECT OVERVIEW

Updated River Crossing Retains Historic Character

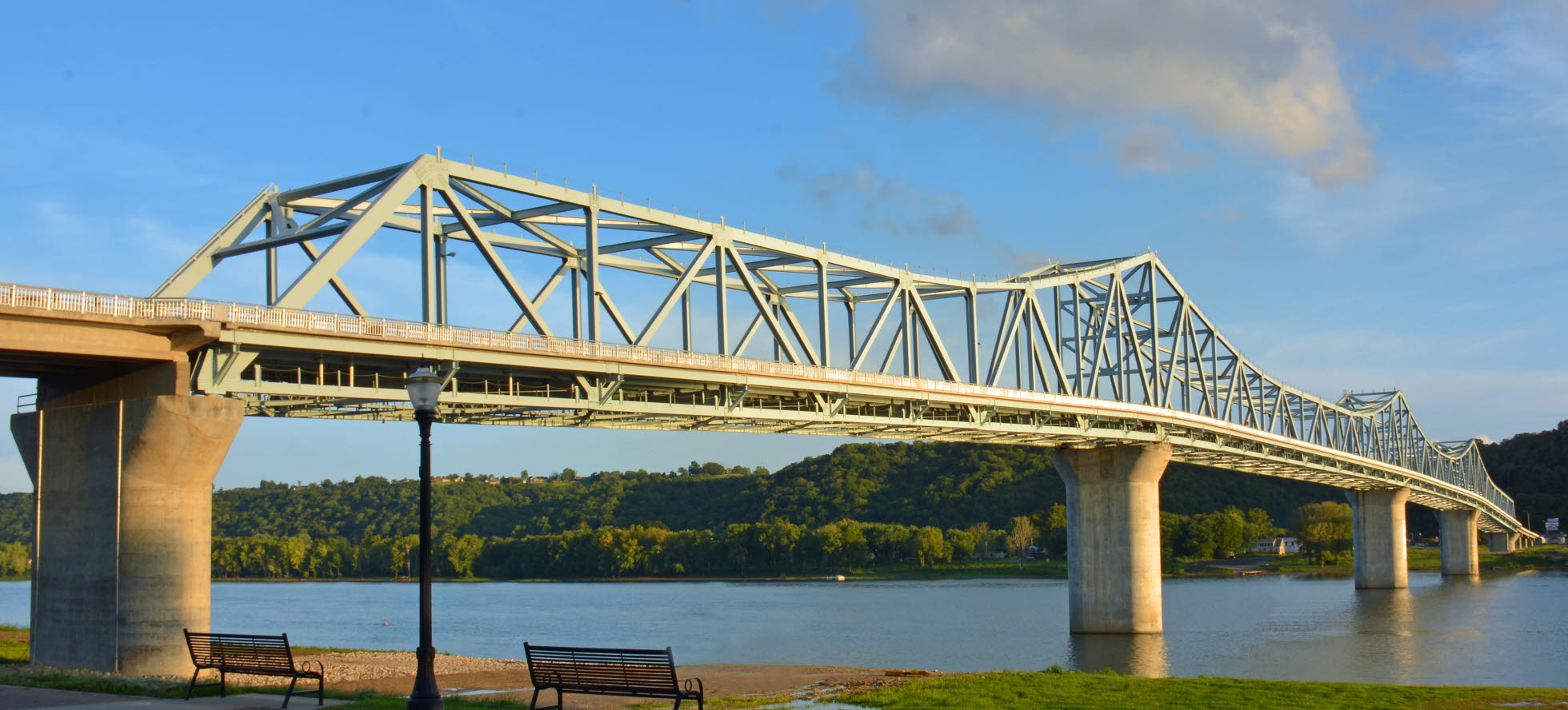

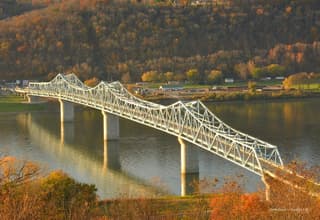

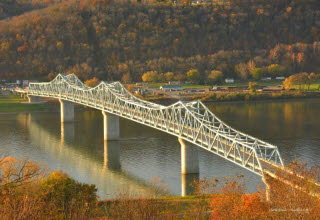

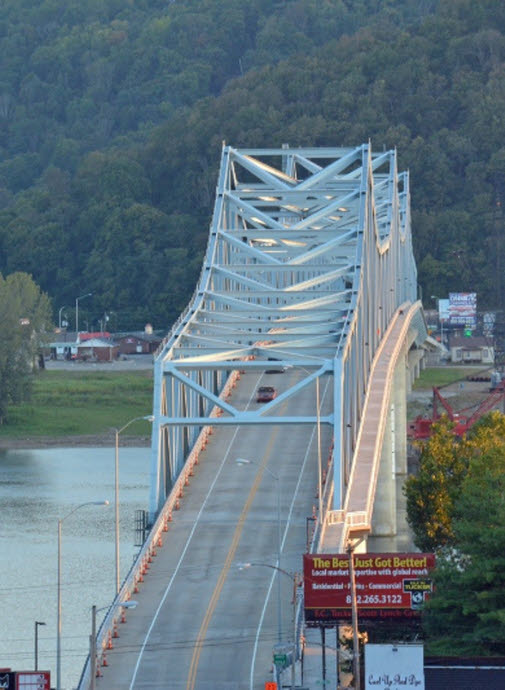

High Steel fabricated structural steel for the $103-million Milton-Madison Bridge Project, a bi-state effort between The Indiana Department of Transportation and the Kentucky Transportation Cabinet. The design of the new truss bridge echoes the 81-year-old bridge it replaced, which spans the Ohio River between Milton, Kentucky, and Madison, Indiana.

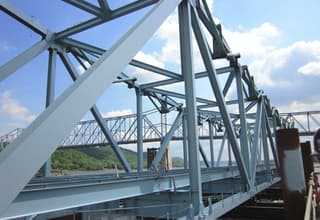

High Steel supplied 8,165 tons of structural steel for the complex 3,181-foot design-build truss project. General contractor Walsh Construction constructed the new steel superstructure on temporary piers immediately downstream from the existing bridge. The new truss was put in place using a controlled slide along steel rails to its permanent location on the renovated existing piers, which were widened and rehabilitated before the move. This innovative erection plan reduced the project's cost and limited construction-related bridge closures to just 10 days. The new bridge first opened to traffic in its permanent location in 2014.

Project Details

Project Specs

  • Bridge Type: Truss
  • Steel Tonnage: 8,165 tons
  • Steel Type: Grade 50W and Grade 70W
  • Coating: Painted Prime

Project Team

  • Project Owners: INDOT and KYTC
  • Owner's Consulting Engineers: Michael Baker Jr., Inc.; Wilbur Smith
  • General Contractor: Walsh Construction, LaPorte, IN
  • Design Consultants: Burgess & Niple Engineers, Columbus, OH; Buckland & Taylor, Ltd. North Vancouver, B.C.
  • Detailer: Tensor Engineering
  • Steel Fabricator: High Steel Structures LLC, Lancaster, PA
  • Steel Erector: Walsh Construction, LaPorte, IN

    Images courtesy Milton Madison Bridge Project Team
